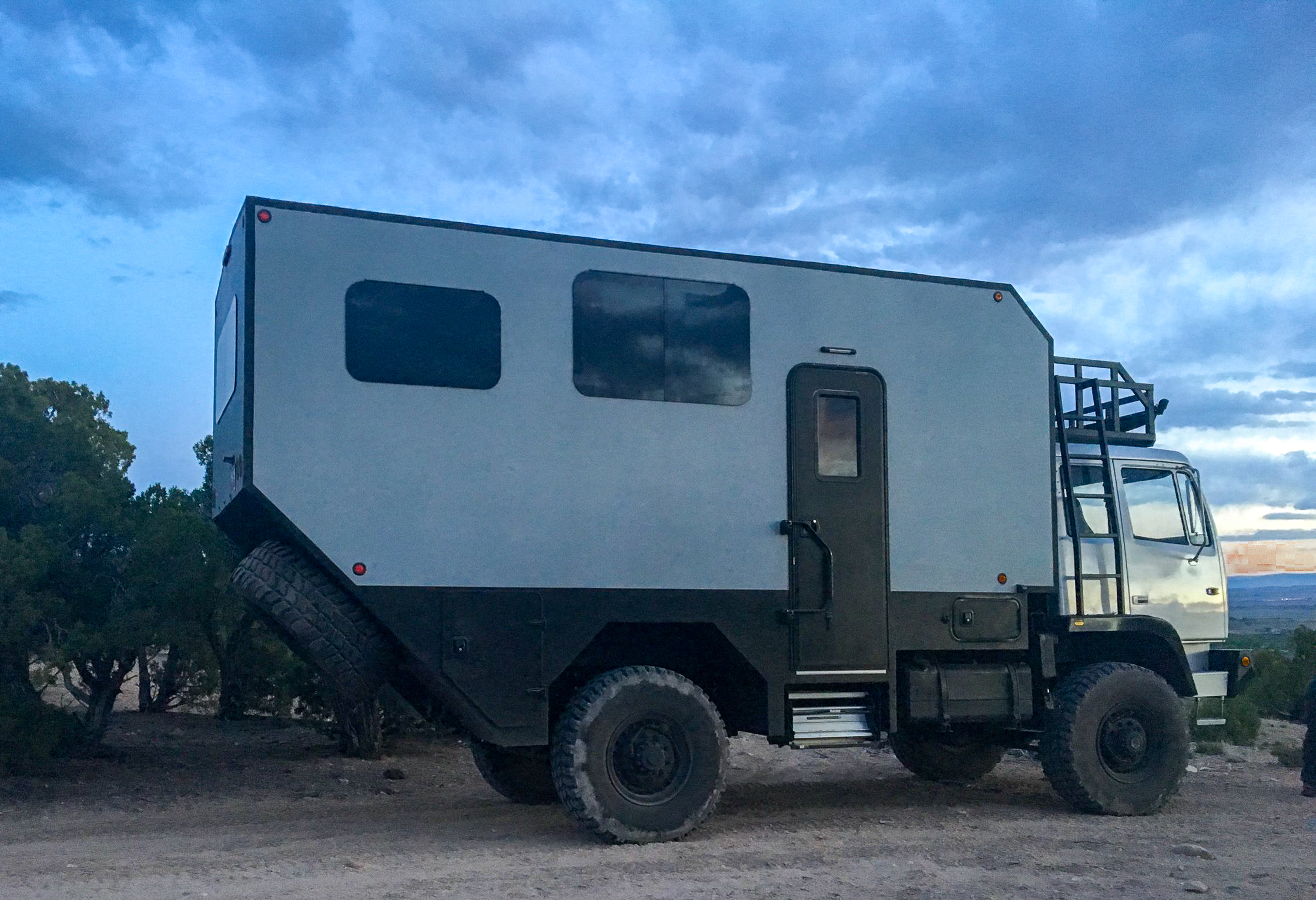

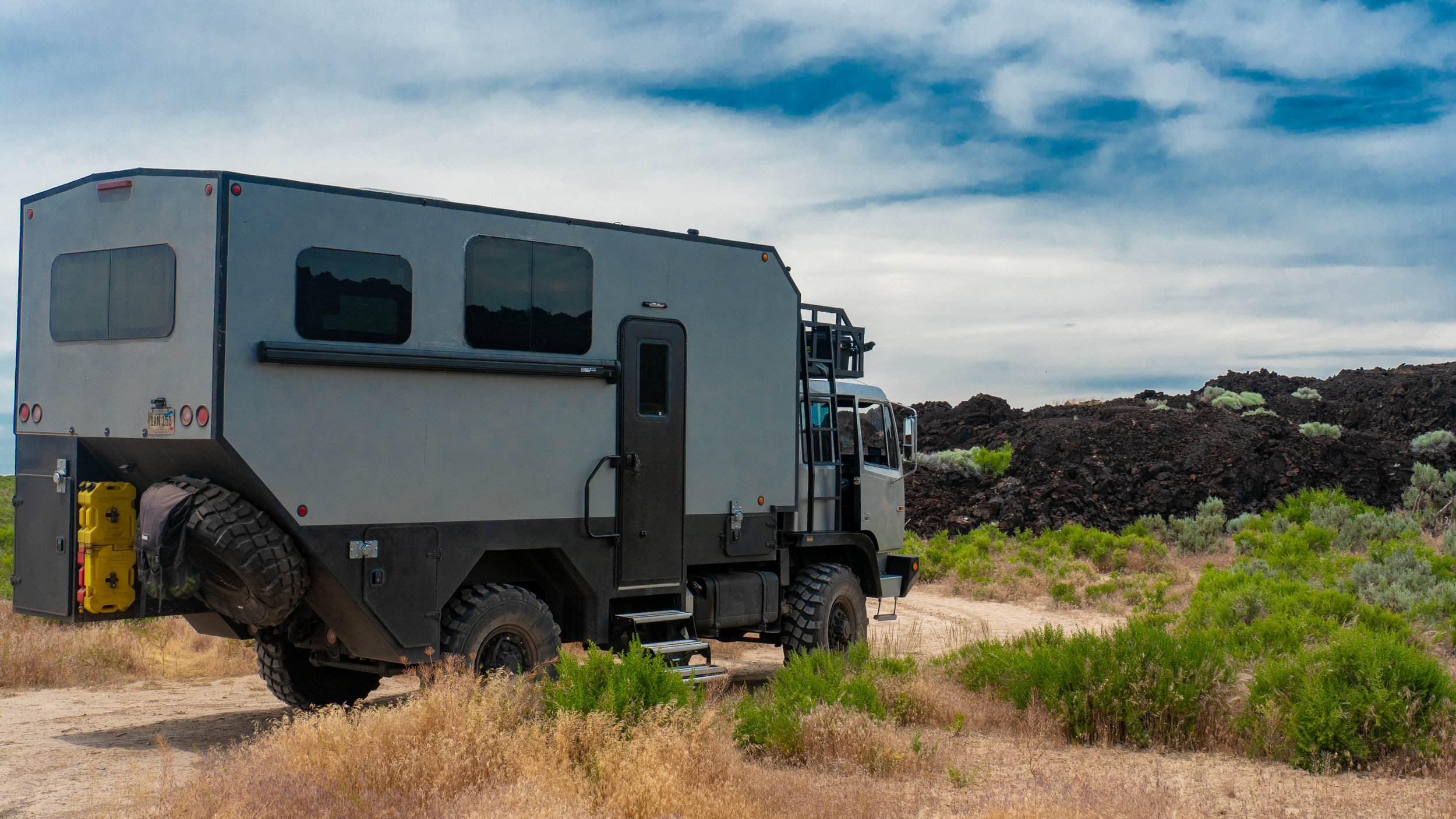

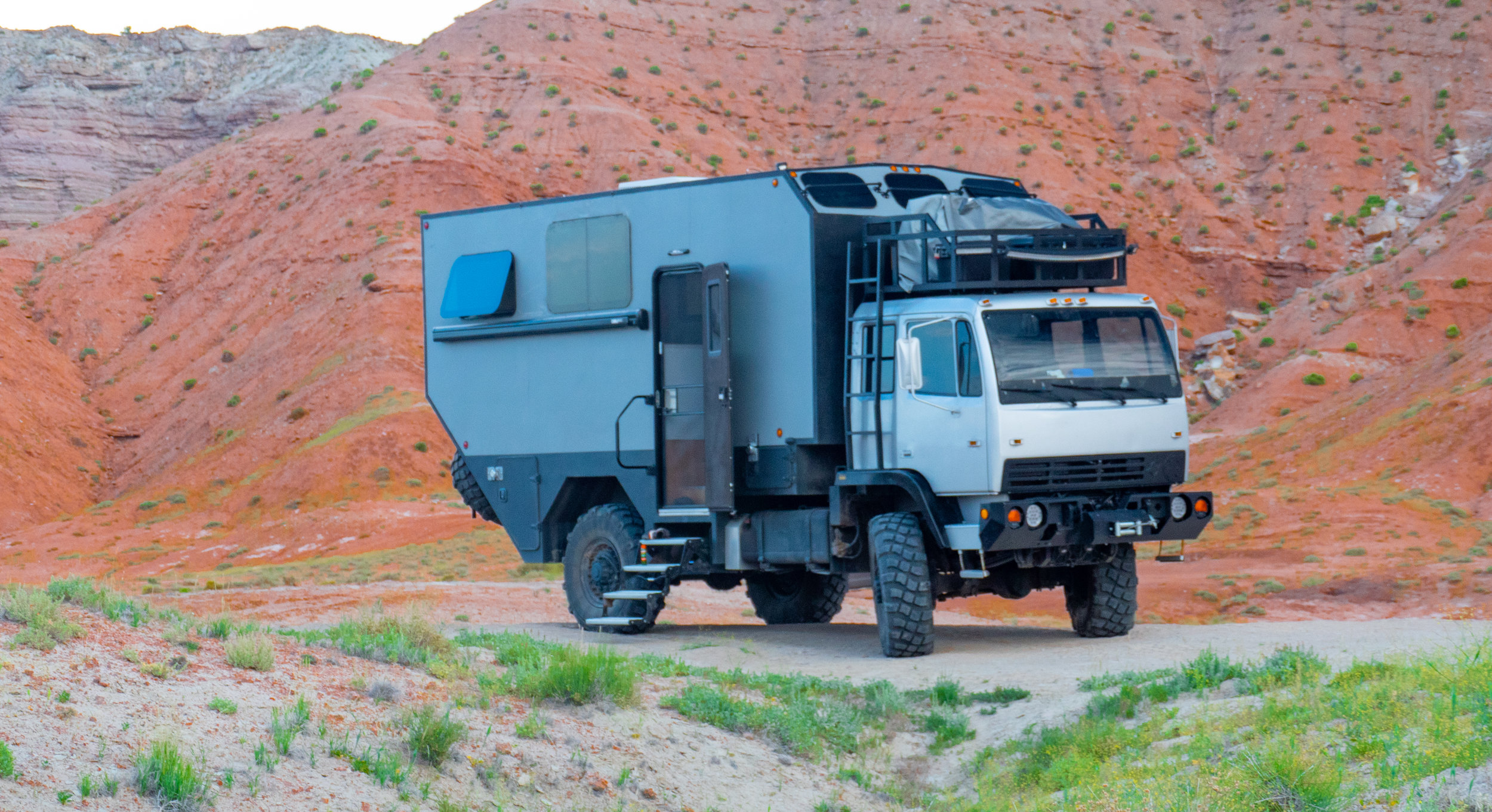

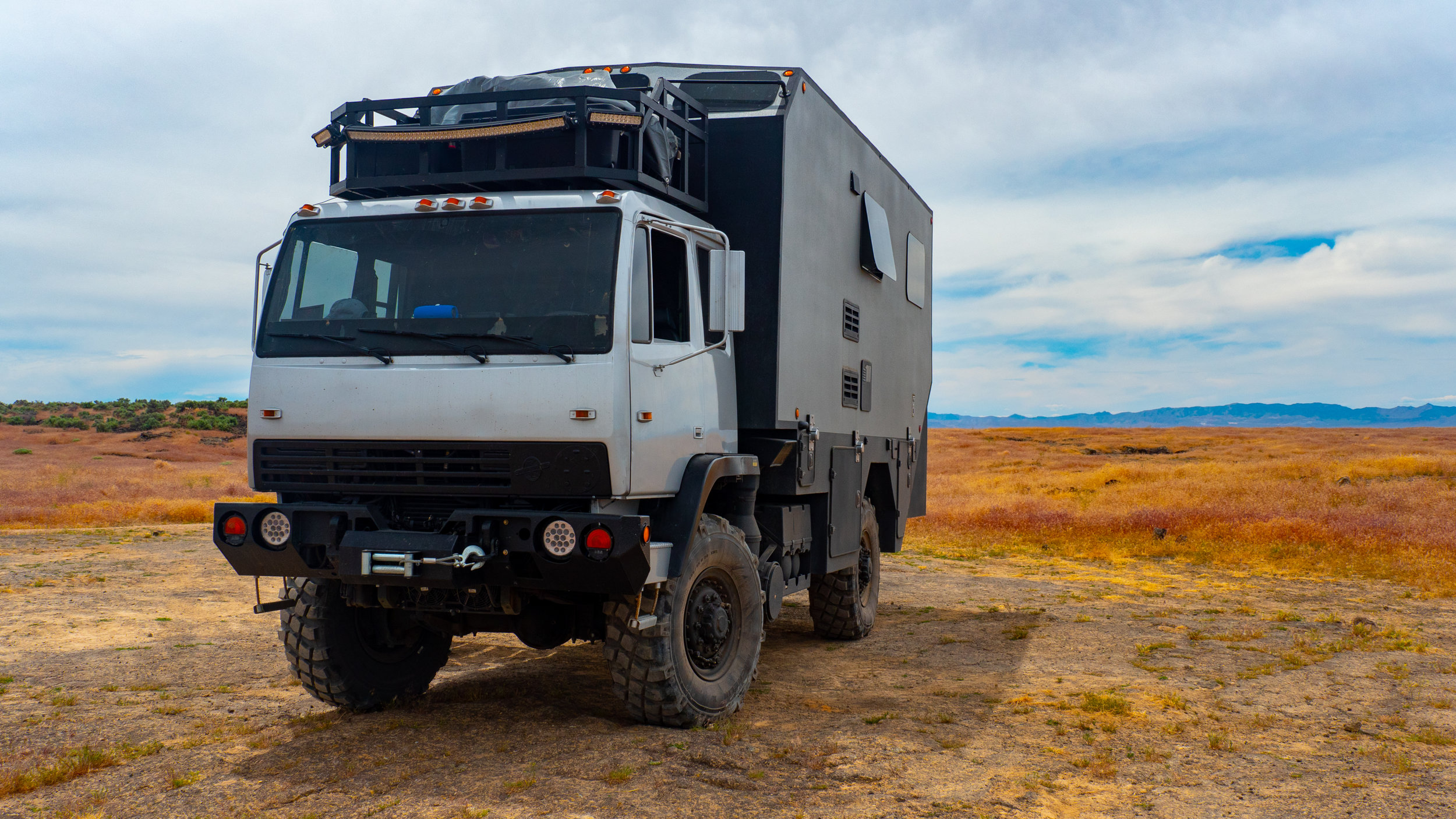

Own your adventure! With this 1997 Stewart & Stevenson LMTV and its professionally configured camper box, you will be ready to explore the world’s most rugged, remote, and wild locations. Whether you want to hunt, fish, or simply travel in freedom, this rig will get you there.

Chassis:

Ultra off-road capable, it has a 275hp Caterpillar 7.2L, 6 cyl turbo diesel engine (does not require low-sulfur fuel), 817 ft-lb torque, 7-speed automatic Allison transmission with rock-crawling granny gear, central tire inflation system (automatic highway, cross-country and sand mode), 17,500 lb recovery winch, extra-large fuel capacity, full time all-wheel drive with 4x4 mode, and 5 new 48” deep-tread, run-flat Michelin XML tires.

Camper Box Construction:

Full 1/8” thick aluminum-welded framing and four-season insulation with heated basement enable travel in extreme temperatures.

Living Area:

Luxury living features include kitchen with quartz countertops, two-burner induction stove, marine-grade Vitrifrigo fridge, zero-radius stainless steel sink, soft-close drawers, dry bath, endless hot water, outdoor shower, ultra-leather swivel recliners, white oak hardwood flooring, and a U-shaped dinette with a solid walnut table. Interior sleeping space is maximized with a motorized queen-sized bed that descends from the ceiling over the dinette area that converts into a second queen-sized sleeping area. Sleeps up to four people.

Storage:

External storage includes a safari rack with three hard-mounted weatherproof containers, five external compartments with high-security hasps, and a 20 CF garage. Storage has LED lighting and a combination of 120V and 12V outlets. Internal storage consists of built-in cabinetry throughout the main living area, mounted netting around upper bed, double cabinets in wash room, single shelving in shower room, four wall-mounted single bookshelves behind the recliners, and dinette bench storage.

Usage:

This vehicle has just 31,000 miles with approximately 100 days of travel time. It is registered as an RV; no CDL required.

For purchase inquiries please contact:

Matt Hermstedt
Email: matthermstedt@gmail.com
Mobile: 913.593.4433

[Note: Vehicle is currently in transit from Alaska to Kansas City with expected arrival date of 9/22/19]


SPECS:

Summary:

  • 31,000 miles

  • Total length: 25 ft 8 in (18 ft 8 in body)

  • Sleeps 4

  • Locking cab-to-cabin access

  • Separate dry bath

  • 8 solar panels (1000 watts)

  • Motorized lowering queen-sized bed

  • U-shaped dining area seats 6, convertible to queen bed

  • Double ultra-leather swivel recliners

  • Professionally configured with extensive camper box renovation in 2018

LMTV Chassis:

  • Caterpillar 3126 Engine - Heavy duty diesel, 6-cylinder, electronic controlled, fuel-injected, 7.2L

  • Power steering, automatic 7-speed Allison transmission

  • 17,500 lb recovery winch

  • Electronic Central tire inflation system

  • Anti-lock Braking System

  • Full-time all-wheel drive (w/ 4x4 mode)

  • Torque: 817 ft-lbs

  • Speed up to 62 MPH

  • 55g fuel tank with additional 30g transfer tank

  • Safari lights

  • AmericaLoc vehicle tracker

  • New 48” deep-tread Michelin R395/75/R20 XML tires

Cab:

  • Insulation & sound dampening

  • Lockable cab-to-cabin access

  • 360-degree camera coverage

  • AM/FM Stereo, XM-Ready

  • Hard-mounted security box

  • Middle jump seat with car seat anchors

  • Cab sound dampening

  • 12 volt lighter/USB port

Camper Box:

  • Length: 18 ft 8 in

  • Exterior width: 8 ft 4 in

  • Interior width: 8 ft

  • Interior height: 6 ft 10 in

  • Ultra-durable rhino lining

  • Fiamma F45S electric 9ft long awning w/ 8’2” extension

  • Cab-to-cabin access (lockable with insulating plug)

  • Energy efficient dimmable LED lights throughout body

  • 3M automotive security window film

  • Screened windows and door

  • Spare tire mount, rear w/electric winch

  • Exterior storage

  • Safari rack with hard-mounted storage

  • Safari lights

  • Heavy duty security hasps on all external compartments

  • External storage garage, 20 CF

Kitchen:

  • Induction cooktop, 2-burner, MiniDuo

  • Undermount zero radius stainless steel sink w/built-in soap dispenser

  • Marine-grade stainless steel Vitrofrigo Refrigerator, 2-drawer style, 5.1 CF capacity

  • External removable Dometic 26L freezer/refrigerator

  • Caeserstone quartz countertop & backsplash (Color: Organic White)

  • Frameless white melamine cabinetry

  • Soft-close drawers

  • Sliding garbage can tray

  • Extra long countertop, 7 ft 8 in

Dining Area:

  • U-shaped dining w/ marine-grade pedestal (seats 6); converts into auxiliary sleeping area

  • Solid walnut tabletop, 1 in thick

  • Ultra durable microfiber upholstery (washable slipcover)

  • Dual USB`/12V ports on both sides of dinette

Living Area:

  • 2 swivel recliners in ultra-leather with walnut pull-out side tables

  • Four (22 in long, 4 3/4 in deep) wooden bookshelves installed behind recliners

  • Slow-Rise blackout shades throughout cabin

  • Privacy curtain separates bathroom area from cabin

Bedroom:

  • Descending queen-size bed above dinette

  • Queen-size memory foam mattress

  • Headboard w/built-in storage and charging station (120v outlets & 2 USB ports)

  • Privacy shades

  • Dinette couch converts to queen-sized bed

Shower Room:

  • Extra large shower: 34”x28”x78”

  • Mounted metal corner toiletry rack

  • Window with storage shelf

  Wash Room:

  • Caeserstone quartz countertop (color: Organic White)

  • Stainless steel sink

  • 3/4 length lighted wall mirror (24” x 40”

  • Cabinet over toilet

  • Cabinet below sink

  • 120V GFCI outlet

Finishes:

  • Caeserstone quartz kitchen countertop (color: Organic White)

  • Caeserstone quartz kitchen backsplash (color: Organic White)

  • Caeserstone quartz bathroom countertop (color: Organic White)

  • White melamine frameless cabinetry

  • White oak hardwood flooring (engineered)

  • Recessed lighting throughout

  • Marine-grade cabinet and door latches

  • Matte black and stainless steel fixtures

  • Ultra-durable microsuede slipcovers on dinette (washable/easy to replace)

Electrical:

  • Controls for systems management and monitoring

  • 12v w/120v systems with shore power inlet and interior outlets

  • 12v voltage inverter, 2000W

  • 120v shore power connection

  • Marine grade shore power cable

  • 8 solar panels for 1000W

  • Circuit breaker and fuse panel

  • 4 AGM deep cycle batteries providing 600 amp hrs

  • Battery disconnect switch (separate kill switches for box and cab)

  • Energy efficient LED lighting throughout

  • WeBoost cell phone amplifier

Climate Control:

  • Dometic rooftop air-conditioner (camper box)

  • Diesel heat

Plumbing:

  • Gray water tank: 40 gal

  • Black water tank: 37.5 gal

  • Fresh water tank: 120 gal

  • Dometic foot-lever flush toilet

  • Outside shower

  • Attachable black tank macerator (black water grinder)

  • Concealed PVC tube for black water hose.

  • Clearsource premium double mechanical water filter system

  • HQUA UV purifier/sterilizer

  • Endless hot water

Misc:

  • Built-in steel Viking safe with key/code/fingerprint access; internal dimensions: H 4.5” x W 10.5" x L 14.5”

  • (4) MaxTrax in yellow

  • Car seat anchors for cab middle jump seat

  • (3) Diesel 2-gallon Rotopax

  • 1) Gas 2-gallon Rotopax

  • (3) Lockable, hard-mounted storage boxes on safari rack

  • Trasharoo for external garbage storage

  • LED lighting and 12V/120V outlets in external storage compartments


Gallery

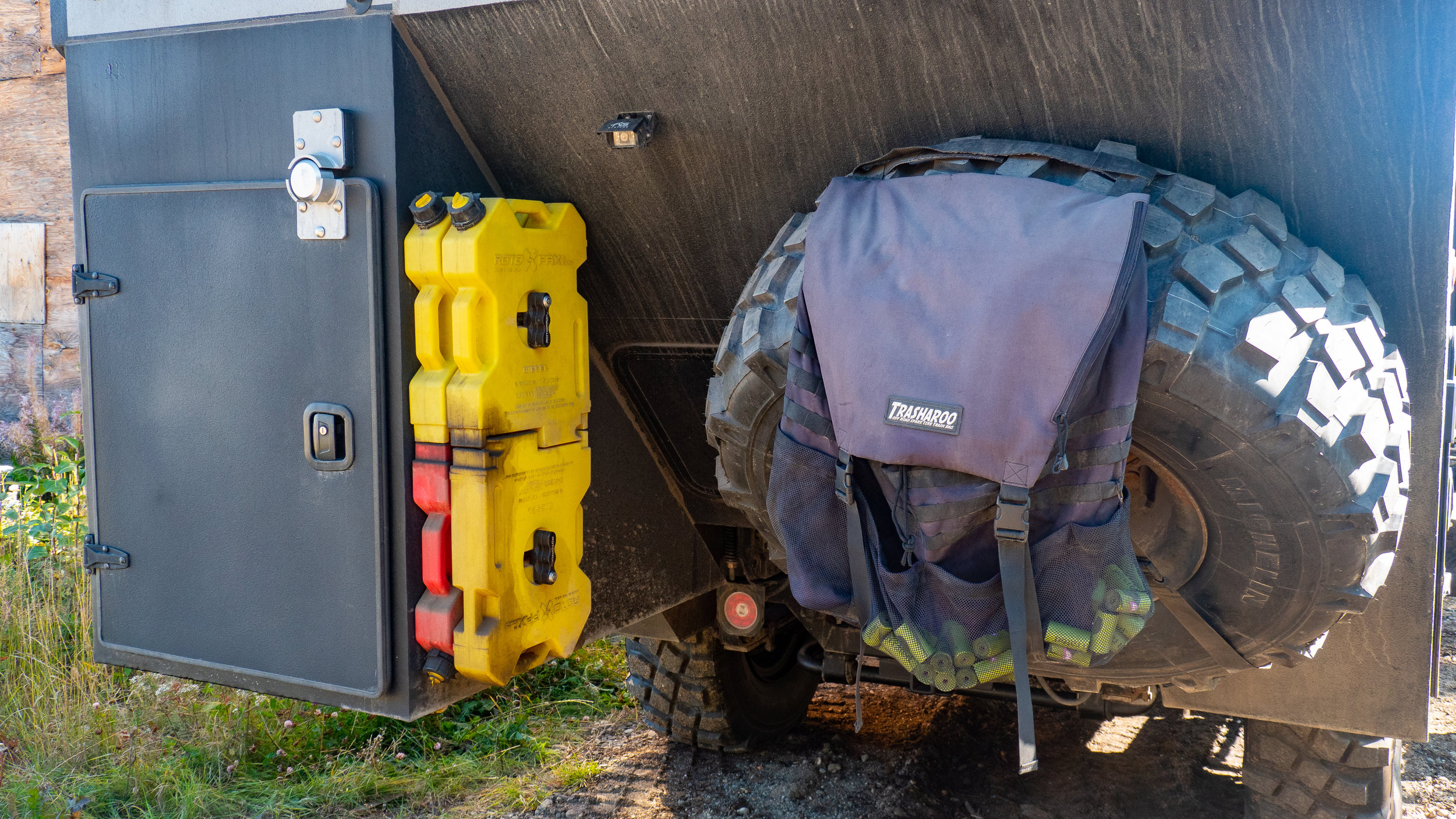

Garage, Rotopax, Spare, and trasharoo

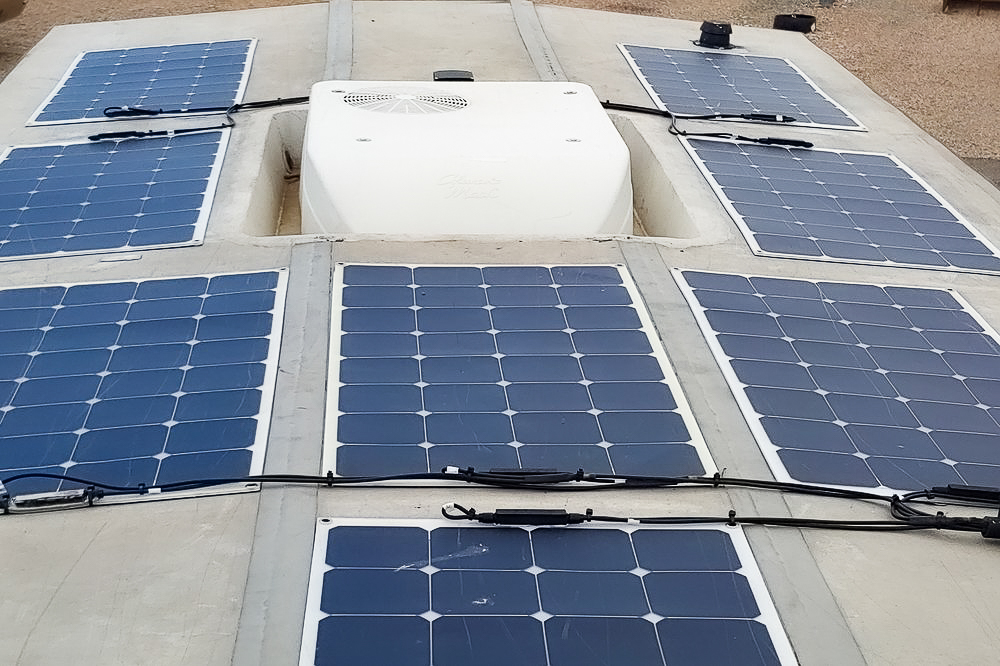

8 solar panels for 1KW

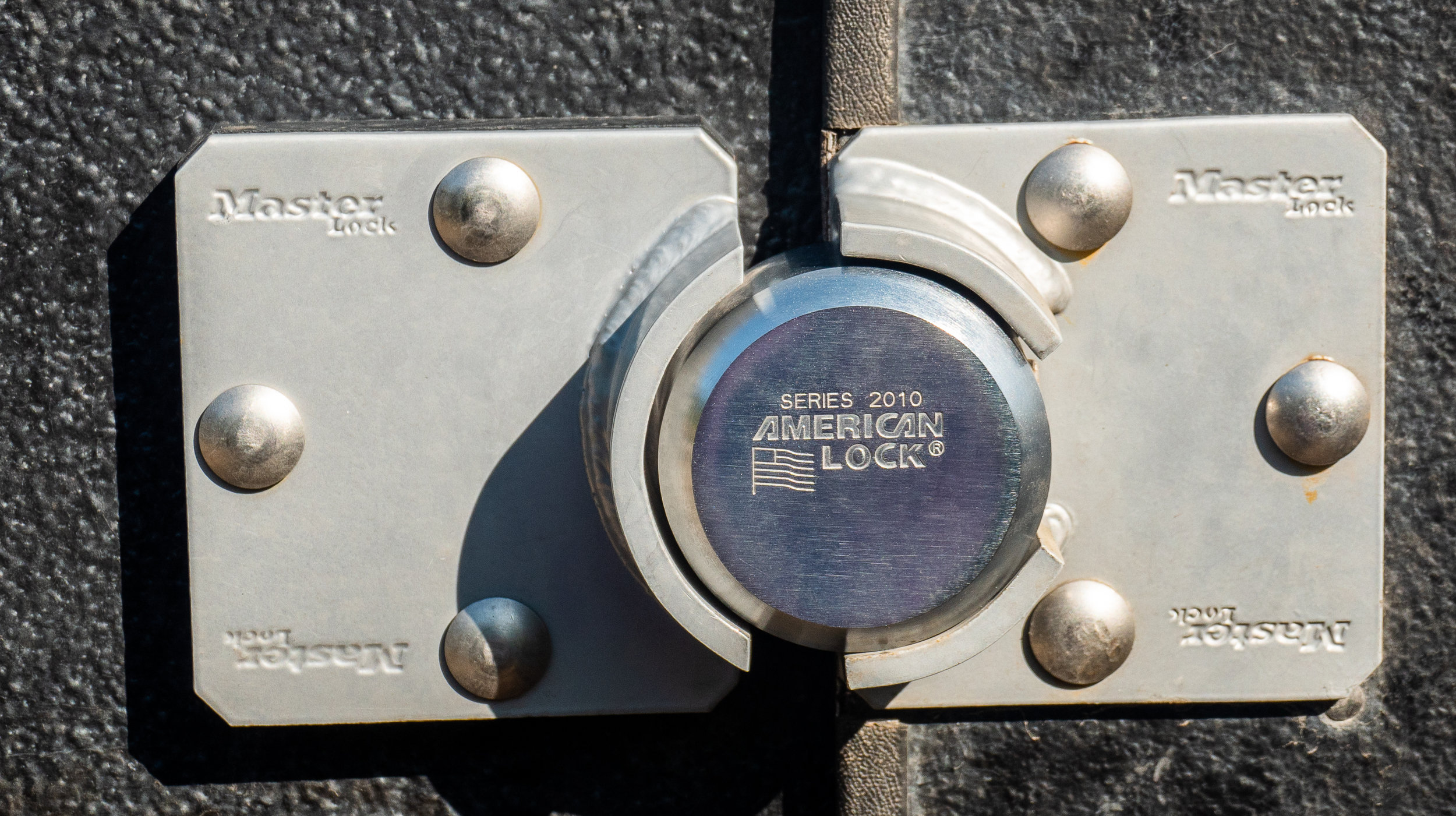

heavy duty Security Hasps on all compartments

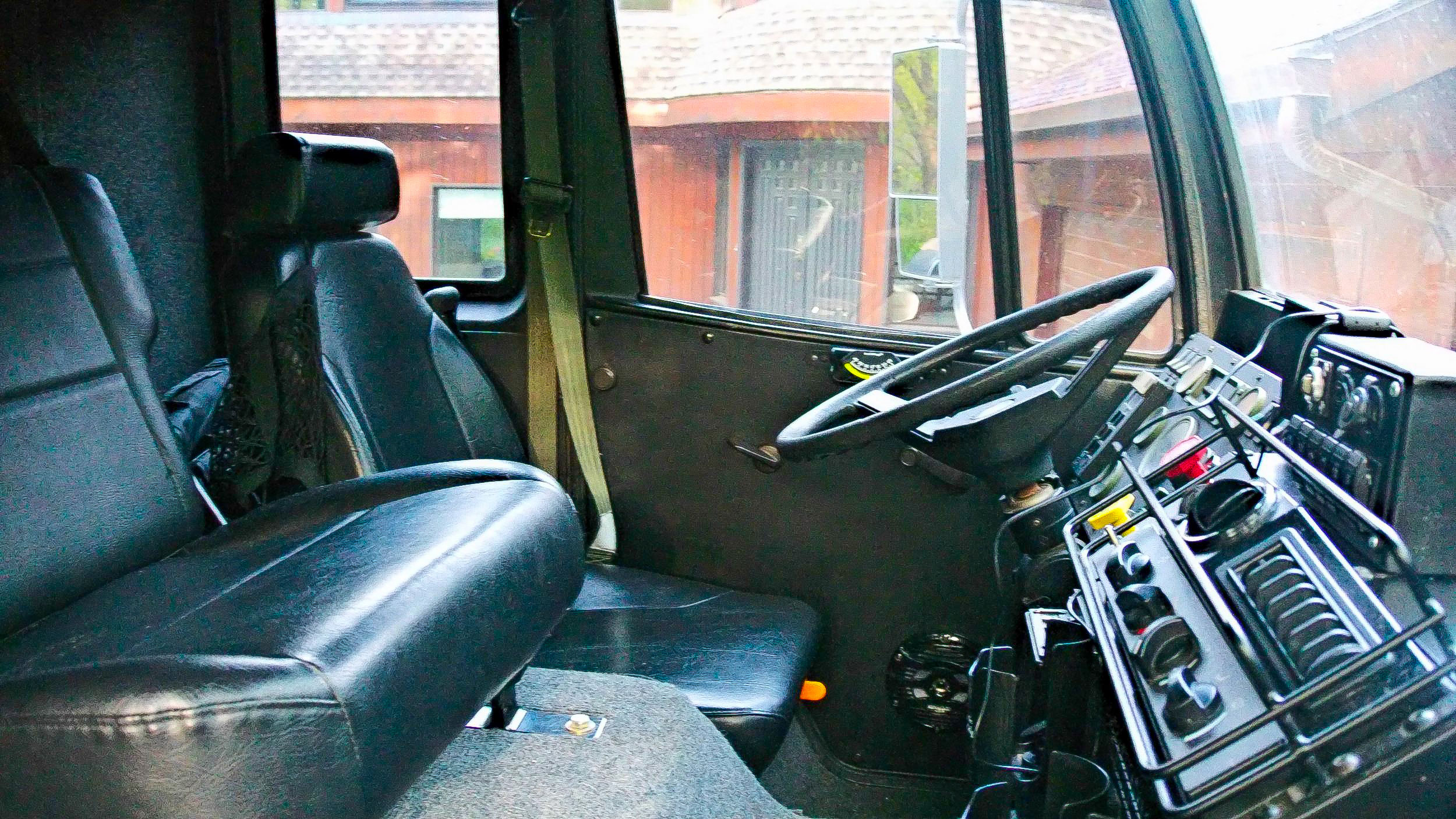

cab area with center jump seat

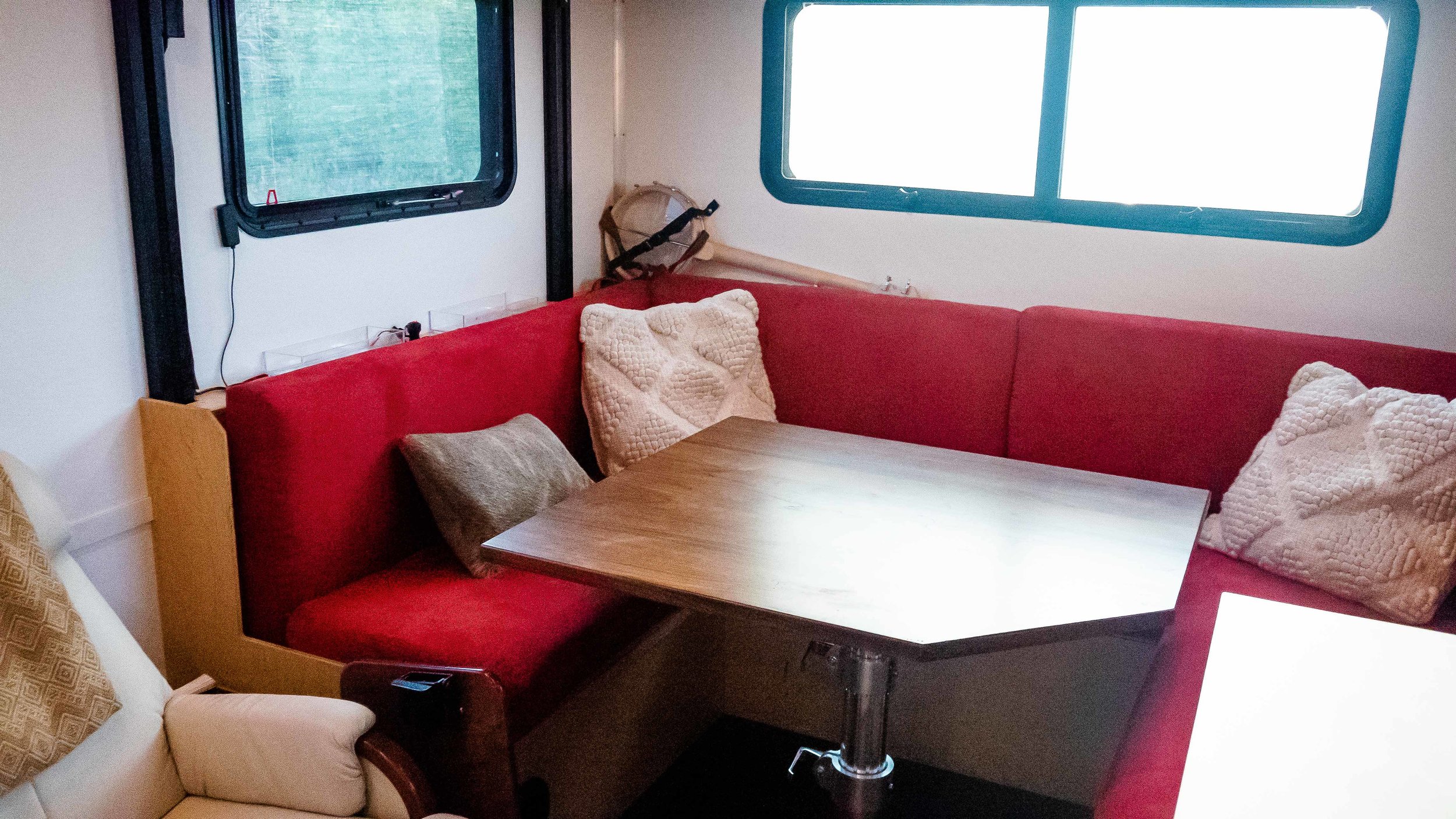

living area with six-person dinette

dinette features washable/removable microfiber upholstery (banjo not included)

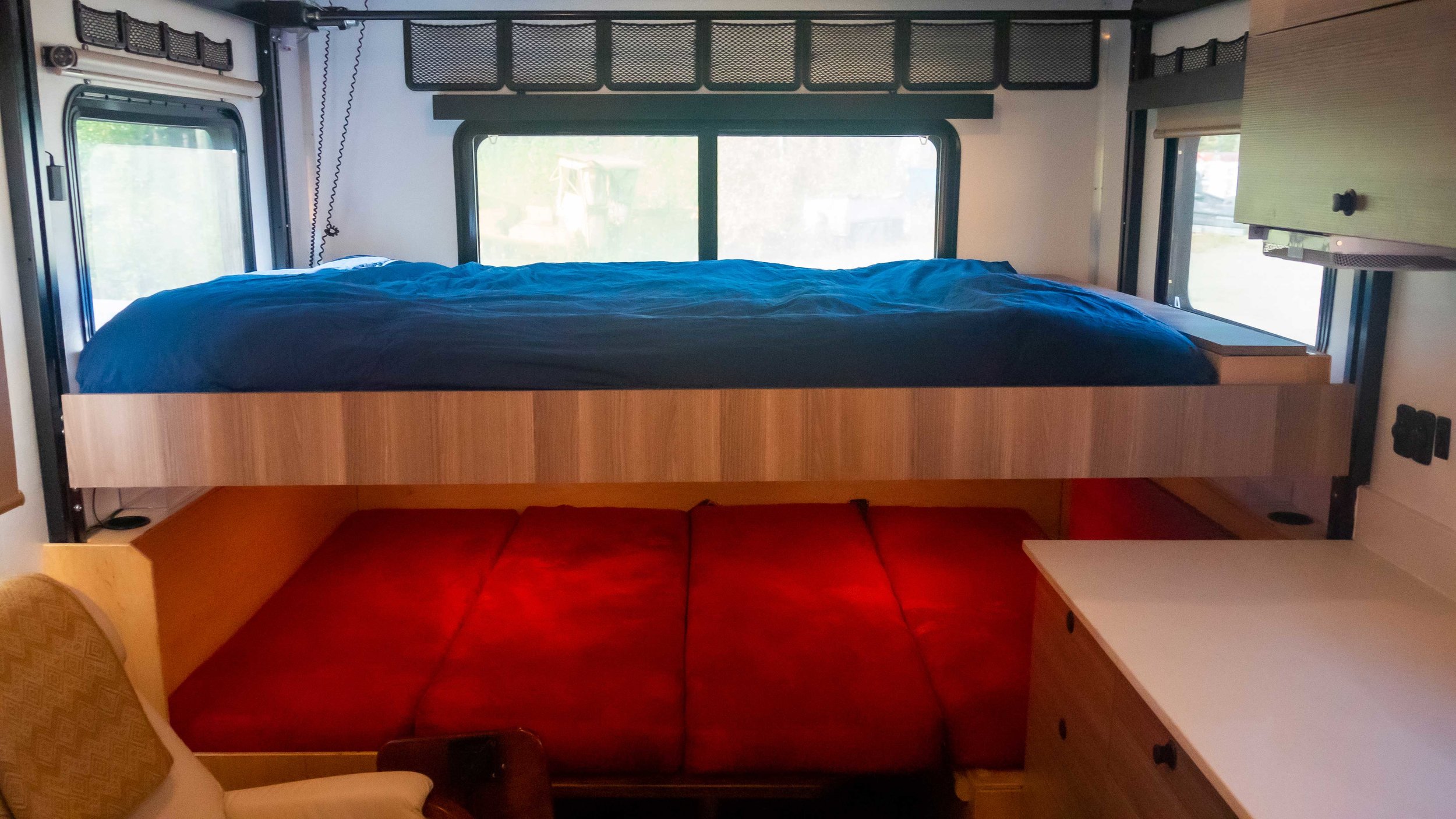

queen-sized bed descends over convertible dinette (sleeps 4)

solid walnut tabletop

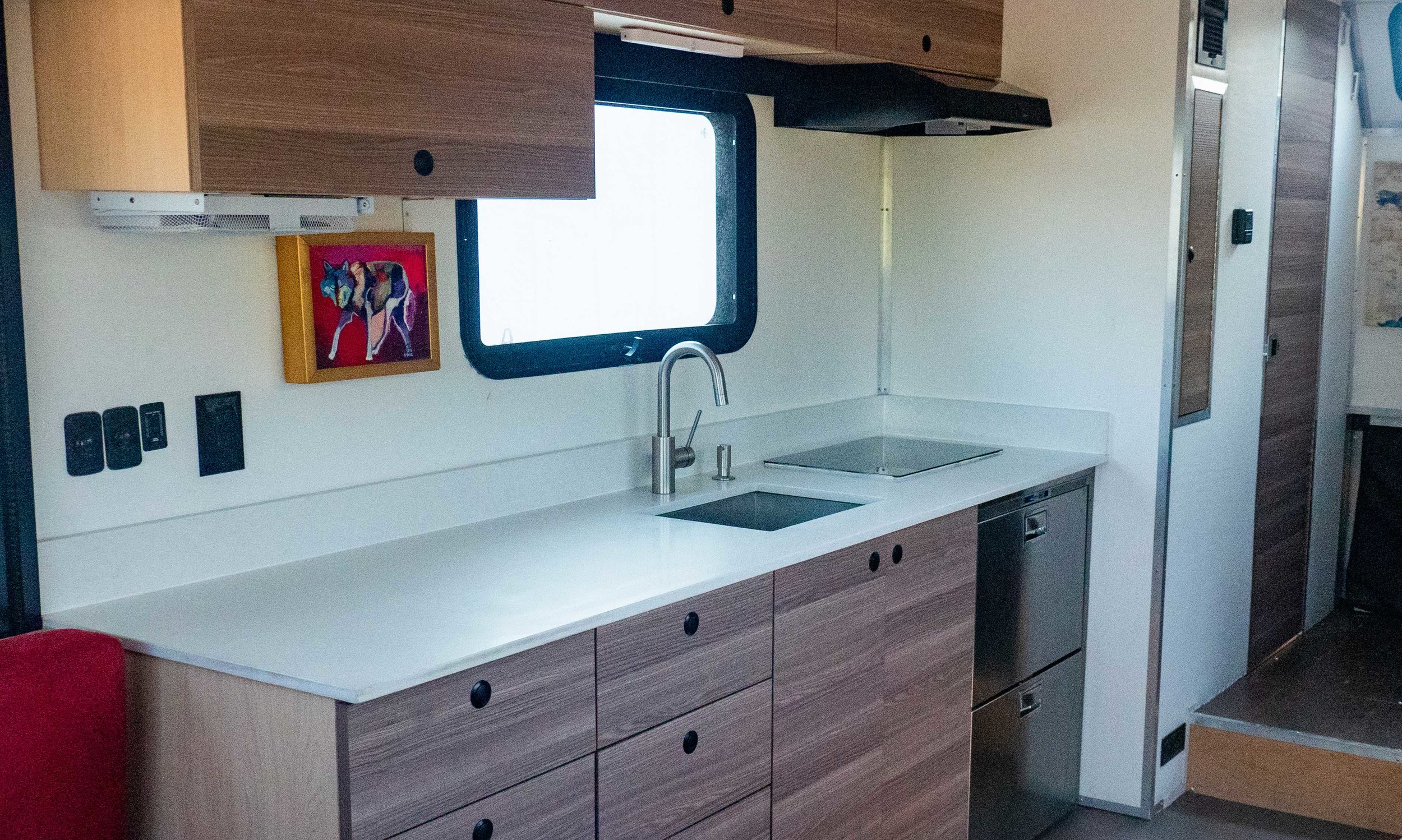

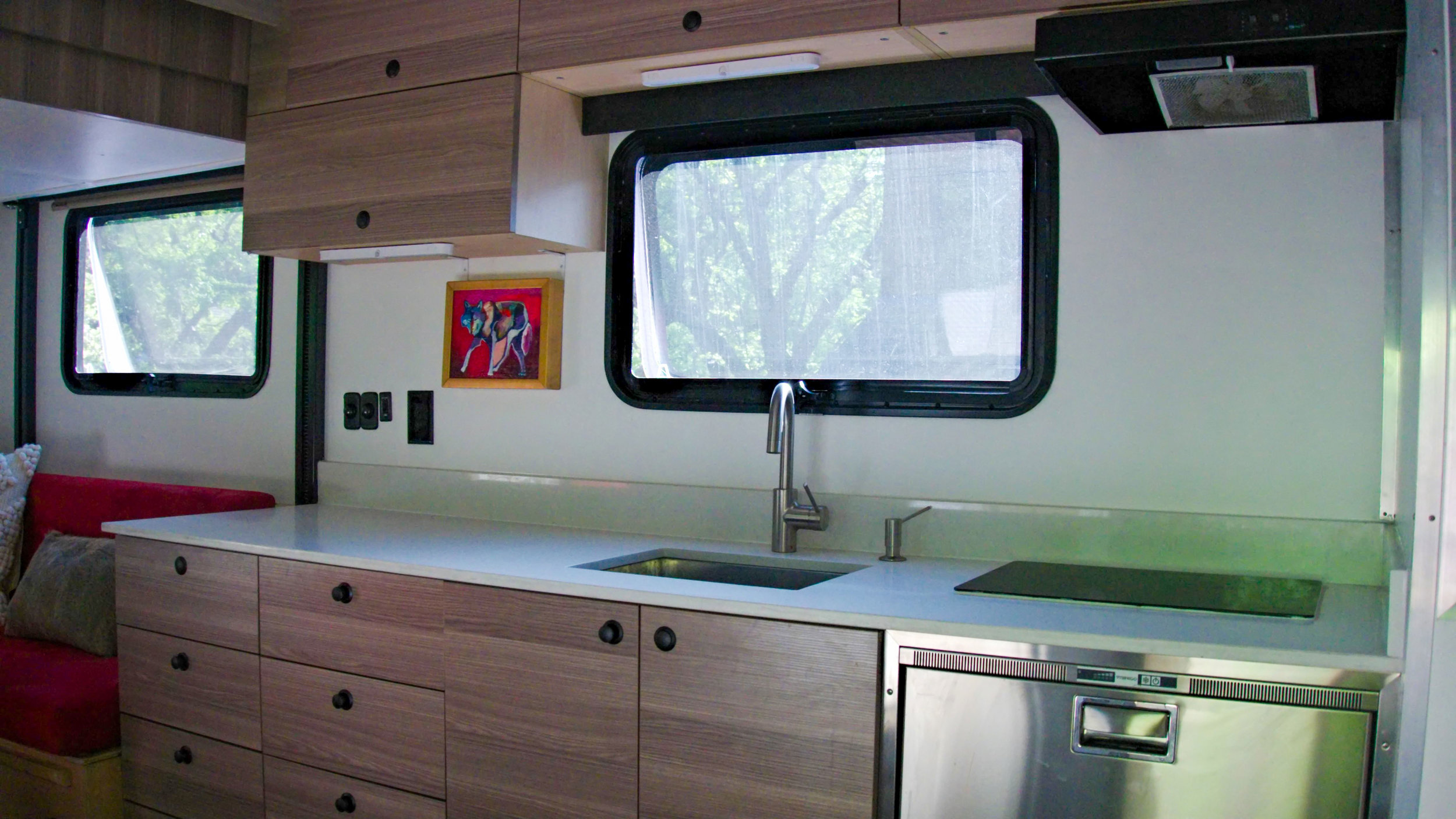

kitchen with dual burner induction stove & stainless steel sink

extra-long caeserstone quartz countertop

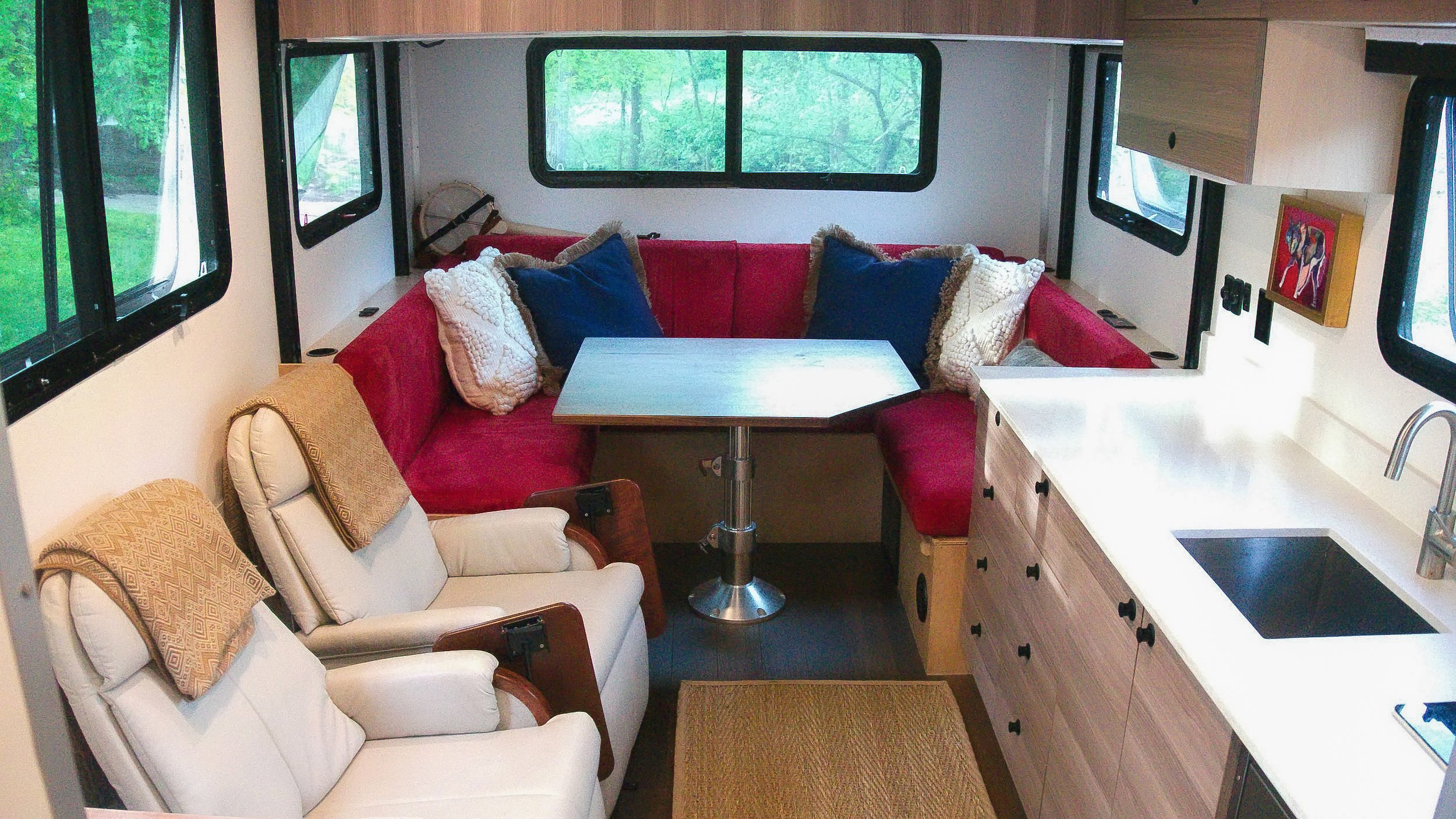

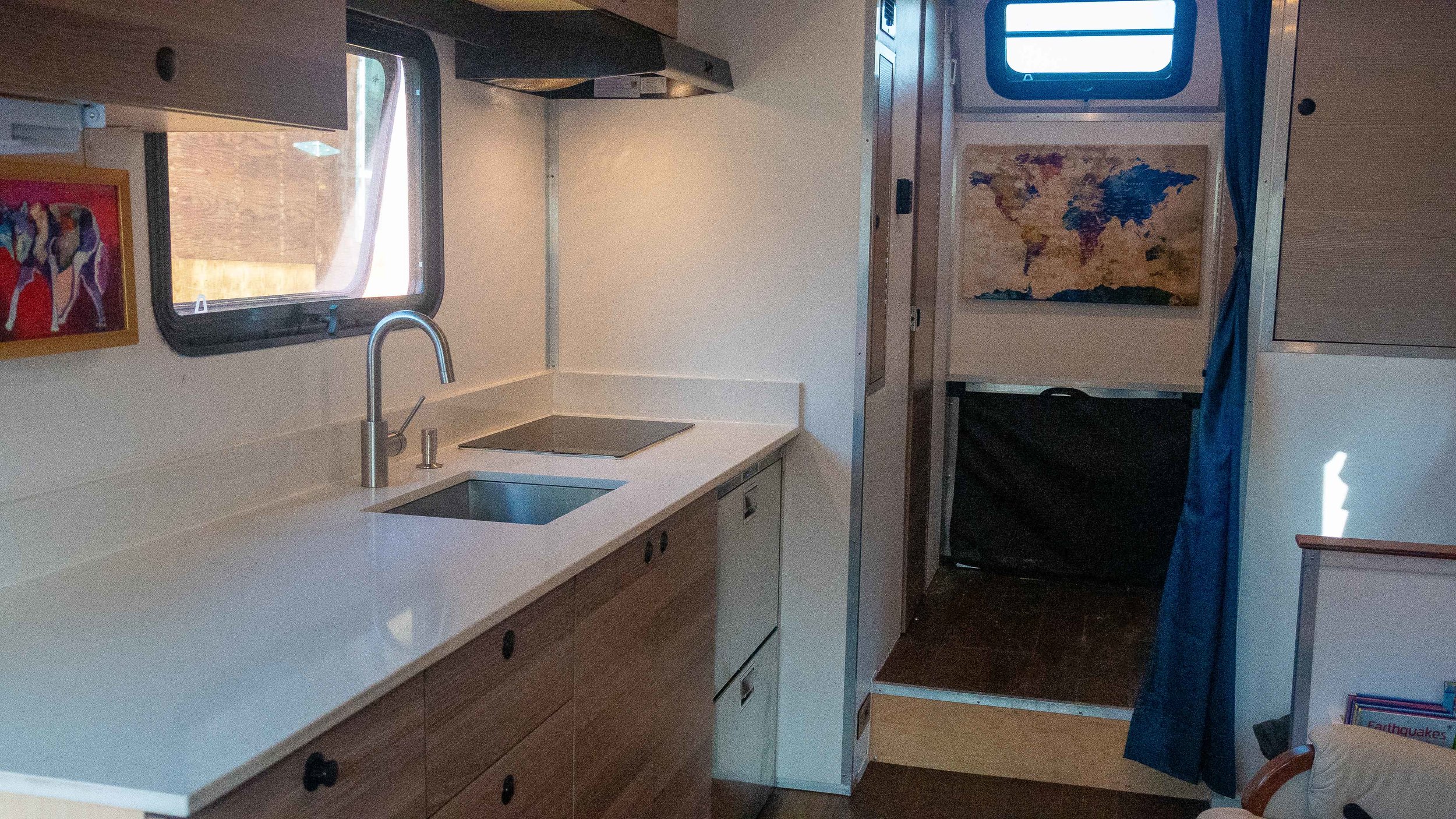

view from kitchen/recliners toward front of vehicle

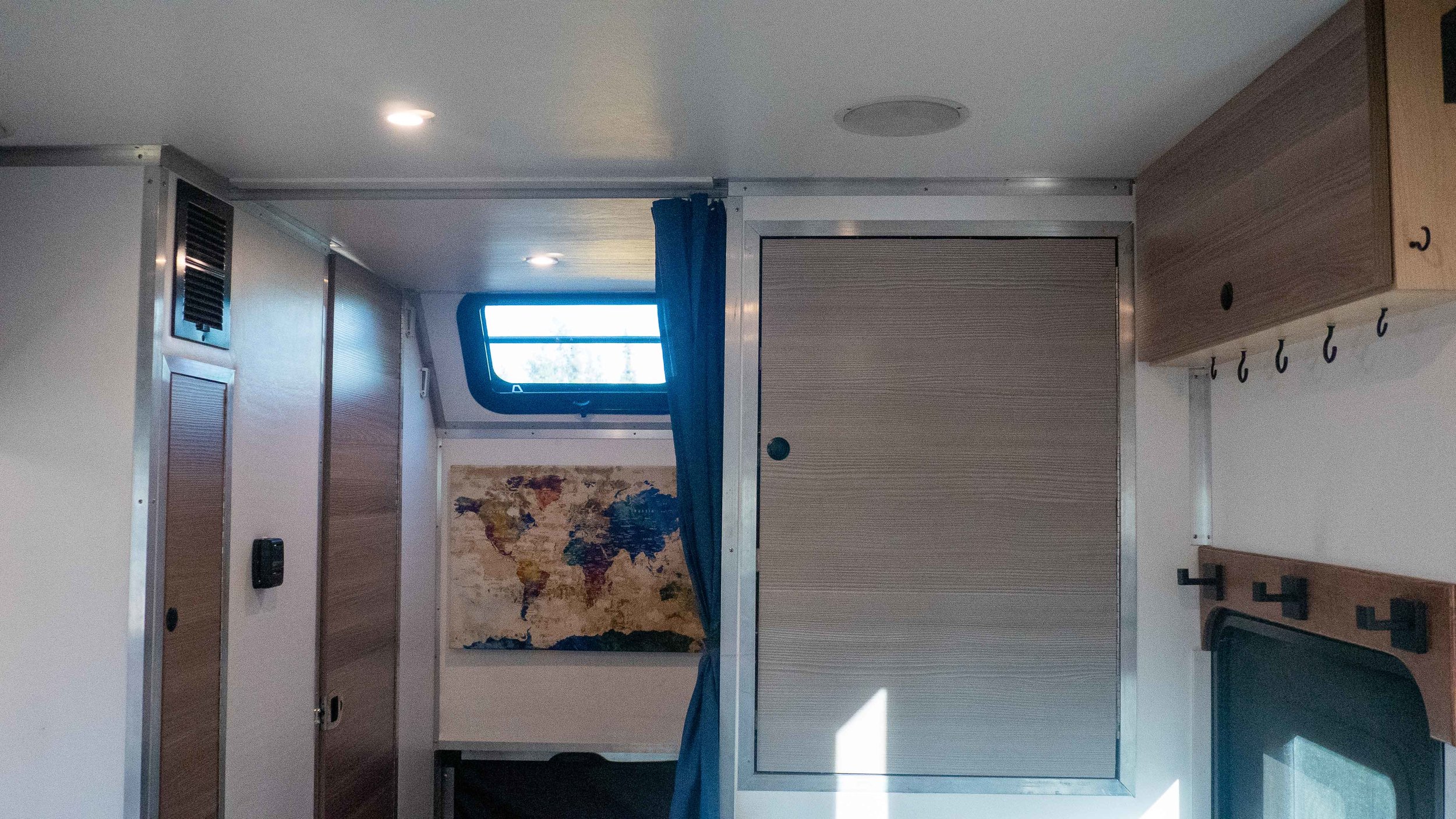

storage and hooks around door and hallway

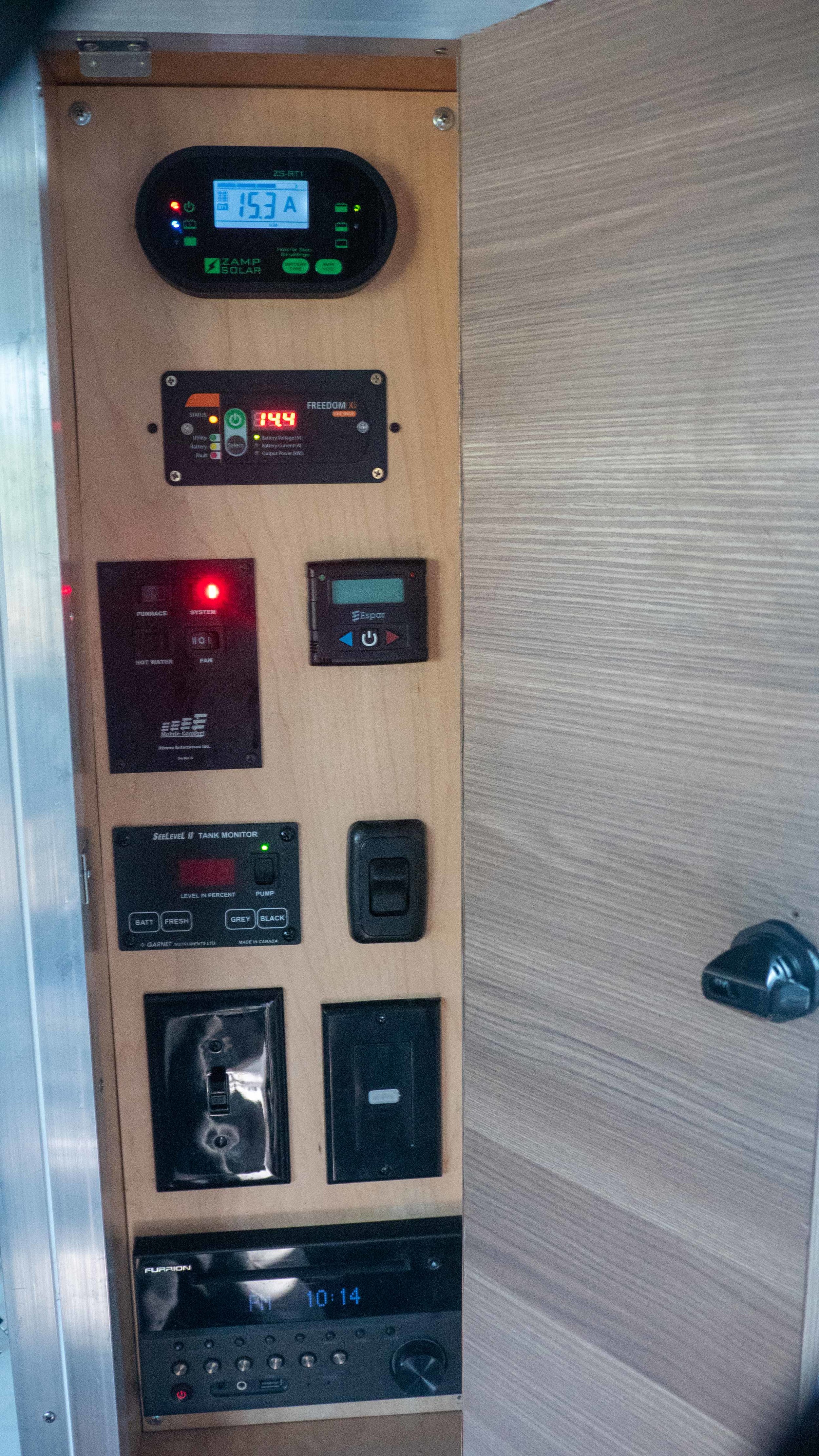

command center

services & stereo

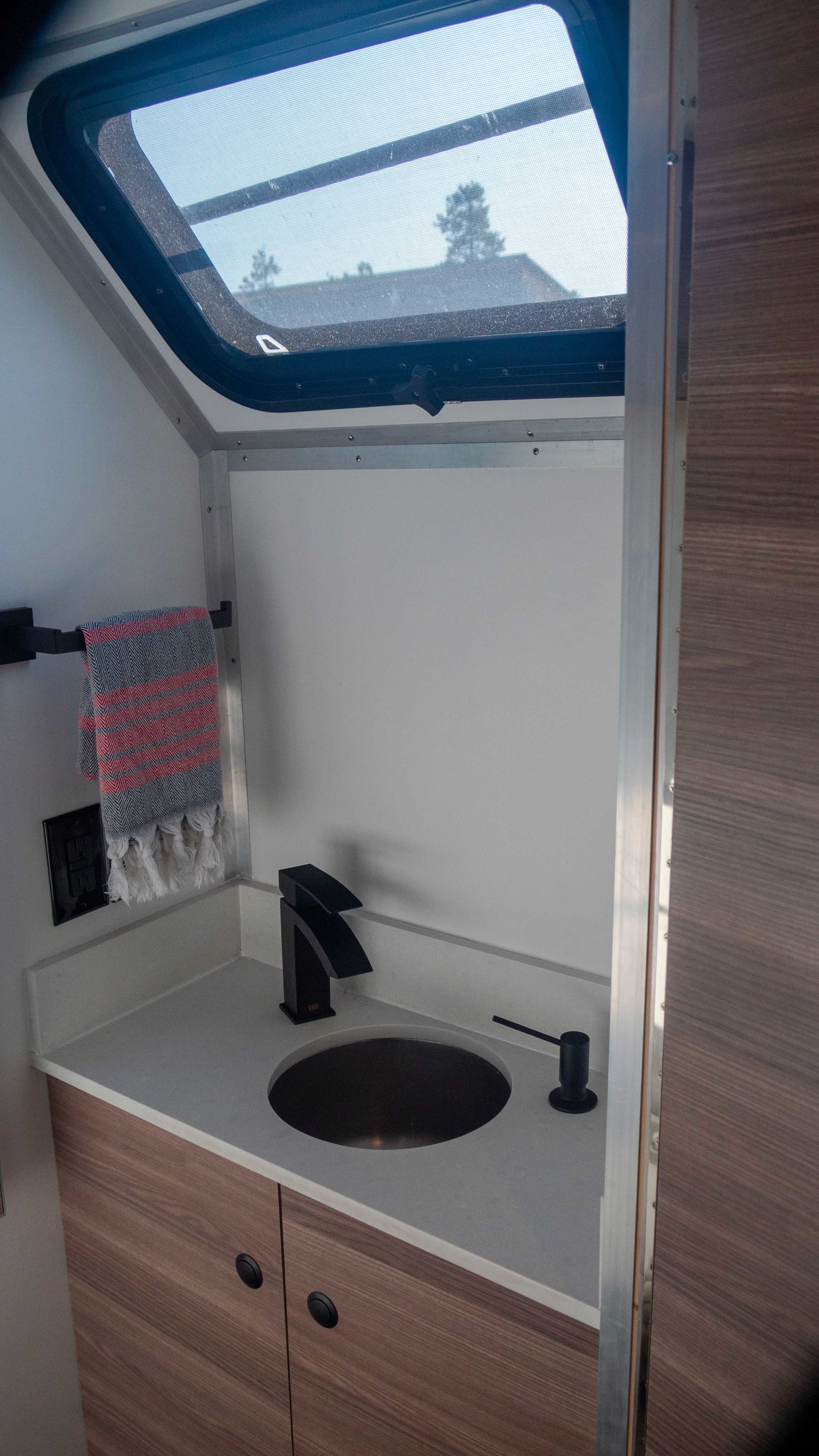

wash room with matte black finishes, stainless steel sink, and window

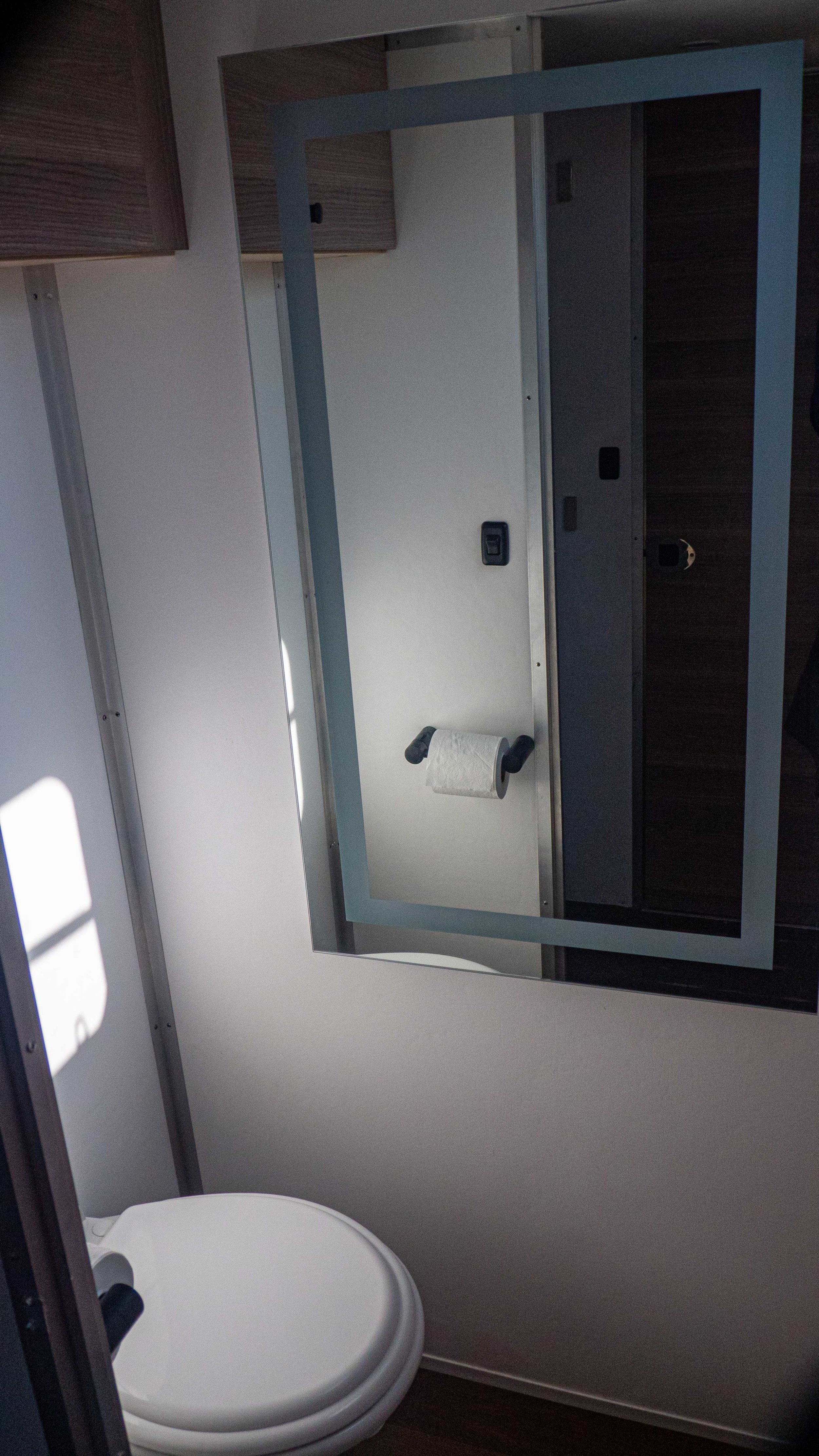

dometic foot pedal flush toilet, 3/4 length lighted mirror

shower room with built-in metal caddy and matte black finishes

wash room includes under-sink & over toilet cabinets

shower with storage rail and window

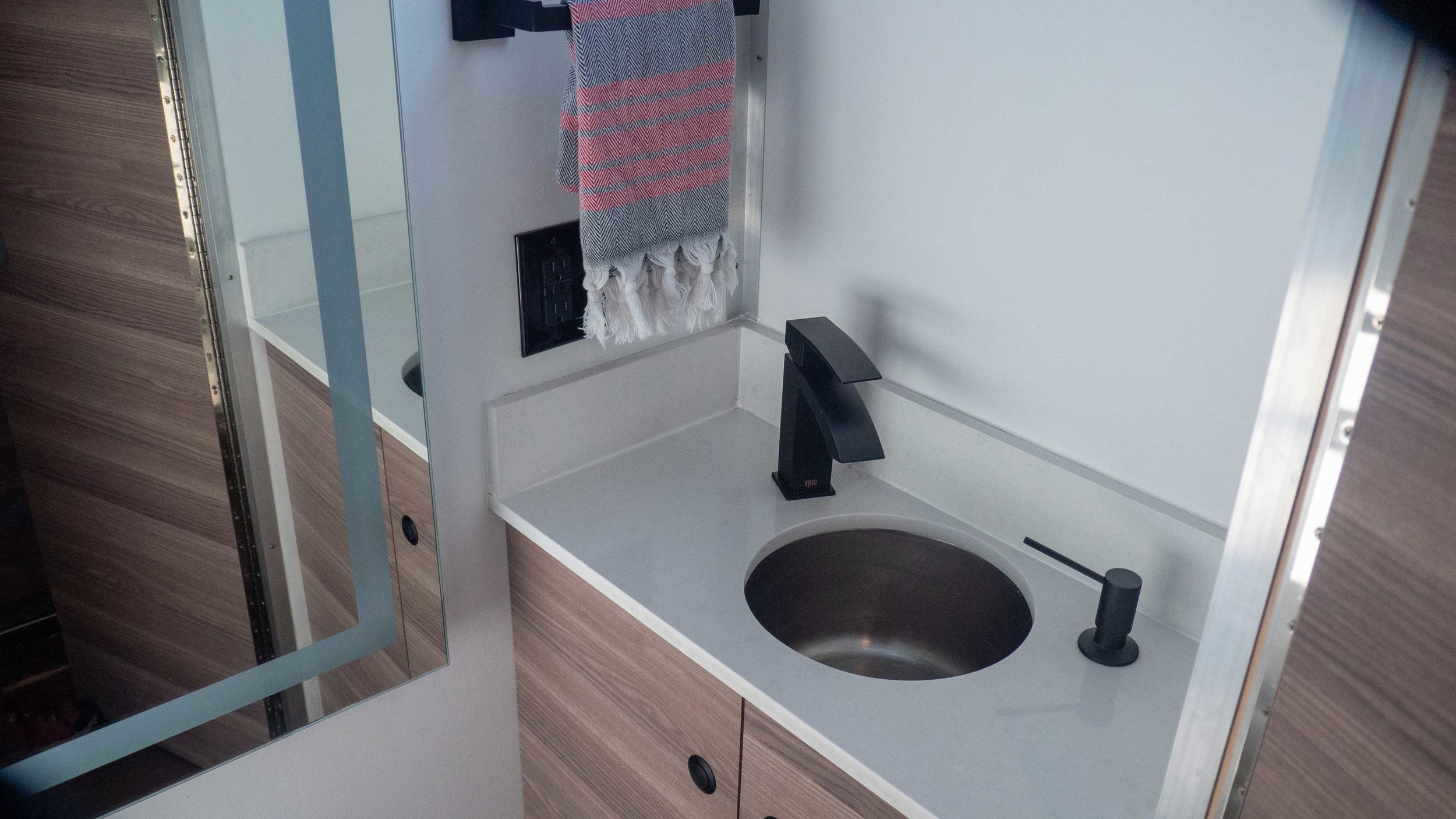

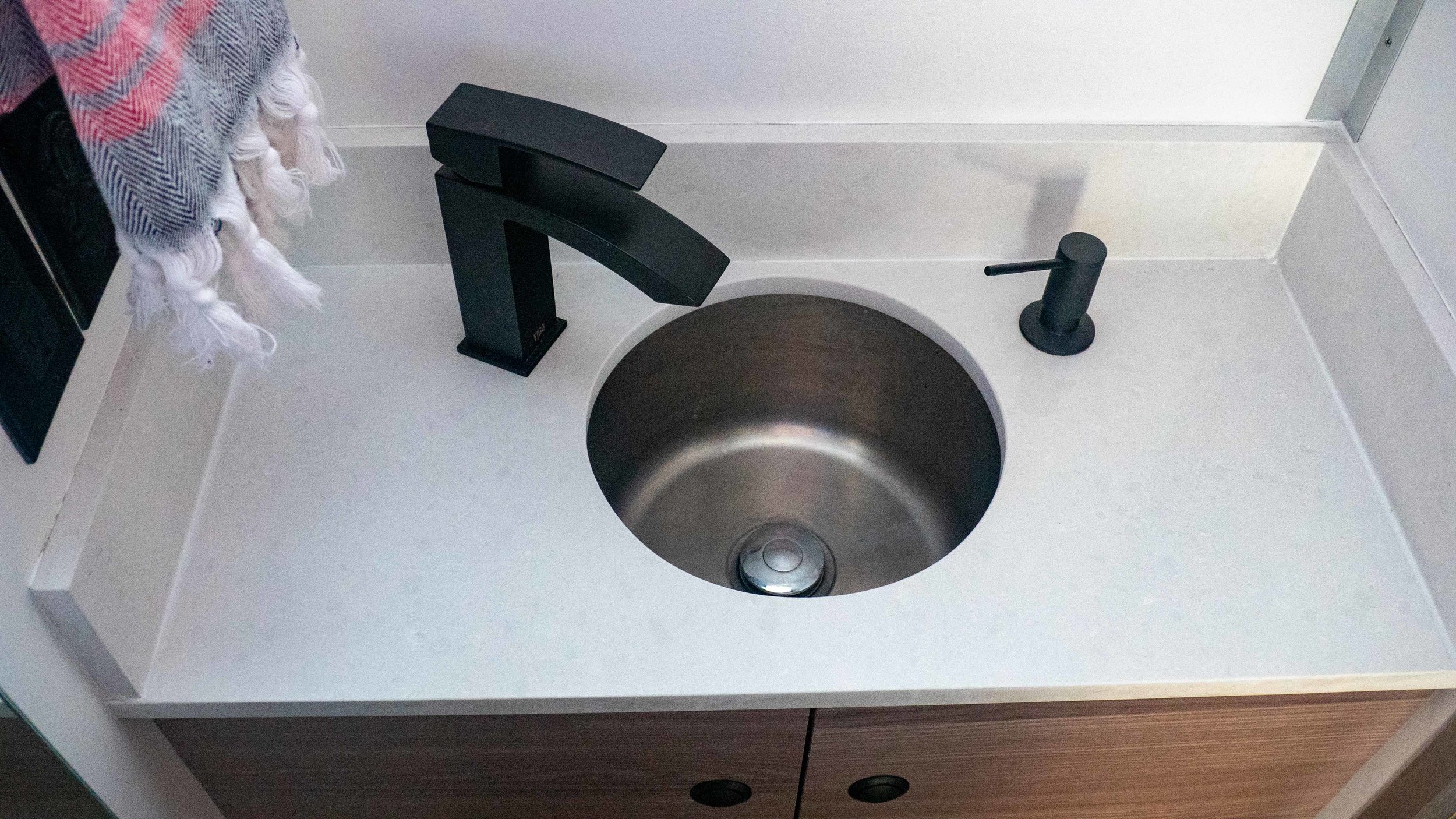

wash room sink with quartz countertop, outlets, USB ports

extensive mounted storage netting above bed
